Açıklama
● Full range AC input: 90~264VAC
● Protection types: Short circuit / Overload / Overvoltage / Overtemperature
● Mounting rail: TS-35/7.5 or 15

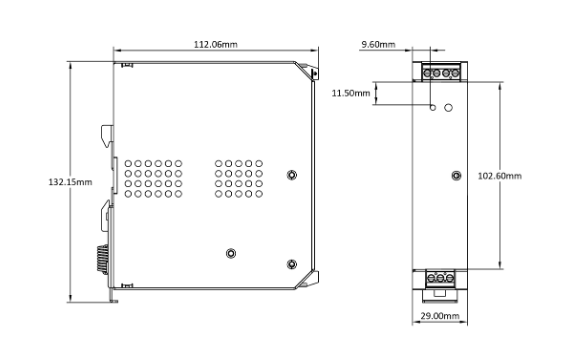

● Narrow width: 30mm
● 100% full load aging test
● High reliability
● 3-year warranty
● Compliant with IEC/EN/UL 62368-1
Input parameters
Voltage range: 90 – 264VAC, 127 – 370VDC
Frequency range: 47 – 63Hz
Efficiency (typical value): 89%
AC current (typical value): 2.8A/115VAC, 1.6A/230VAC
Inrush current (typical value): 30A/115VAC, 55A/230VAC (cold start)
Leakage current: <1mA/240VAC
Output parameters:
DC Voltage: 24V
Rated Current: 6.25A
Current Range: 0 – 6.25A
Rated Power: 150W
